Product Description

ü Fastest ever smoke Speed
1 second Trigger, 8 seconds cover the full area
No heating time.
ü Easy to replace and refill
smoke container can be easily replaced, generator can be used repeatedly.
ü Innovative patented Technology
Dry smoke formula, unique cold smoke technology.
ü The densest smoke
The innovative formula with a high percentage density ensures really dense and powerful smoke.
ü Safe and certified
The security smoke formula is biodegradable and harmless to humans, furnishings and electrical equipment.
ü Low Power Consumption
Low voltage start-up, low standby power consumption, Max working power 48W.
Product Details

HAM-FH (with/without battery)

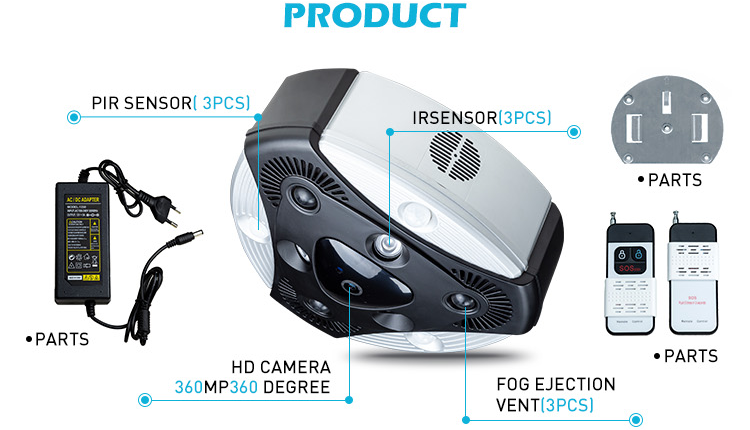

Device Features:
.HD camera
.PIR motion sensors
.WIFI/LAN connect
.Two Way Audio
.Built in Siren

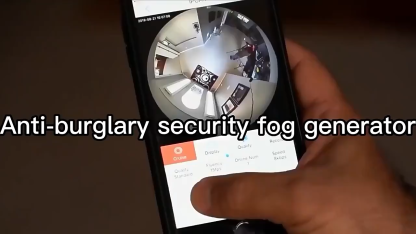

.IOS/Android APP monitor&online trigger
.Remote control trigger
.1 second trigger, 45 minutes duration
.Non-toxic, Non-corrosive solid food grade Fog
Parameter
| Name |
Model |
HAM-FH |
| Name |
Smart Fog Generator |
| Camera |
Image Sensor |
1/2.8” Progressive scan CMOS |
| Min. Illumination |
0.02Lux@(F2.0,AGC ON )0Lux with IR |
| Shutter time |
1/3 s to 1/100,000 s |
| Lens |
4mm@ F2.2 |
| Lens mount |
M12 Support 2.4mm, 4mm, 6mm,8mm Lens |
| Day&Night |
ICR Infrared filter type with auto switch |
| Digital noise reduction |
3D DNR |
| Wide Dynamic Range |
Digital WDR |
| Compression on Standard |
Motion Detection |
On /Off Sensitivity adjustment |
| Video Compression |
H.264 |
| H.264 code profile |
Main profile |
| Video compression encoding rate |
Ultra clear, HD, Balanced process |
| Image |
Max. Image Resolution |
1920x1080@30fps |
| 720x480@30fps |
| 360x240@30fps |
| Capturing 2048*1536 JPG |
| Support mainstream and sub stream separately |
| Frame Rate |
50 Hz:25 fps (1280 × 960), 25 fps (1280 x 720) |
| Image Settings |
Saturation,Brightness, Contrast adjustable by client software or web browser |
| Backlight compensation |
Support |
| Network |
Smart Alarm |
Motion detection |
| Key configuration |
Find IP via P2P connection |
| General Function |
Anti-Flicker, heartbeat,mirror, password protection |
| Interface |
Storage Interface |
Micro SD CARD MAX 128G |
| Power Interface |
Micro USB interface |
| Communication Interface |
1 RJ45, 10/100M |
| Wi-Fi specifications |
Wireless Standards |
IEEE802.11b, 802.11g |
| Frequency Range |
2.1GHHZ~2.4835GHZ |
| Channel Band width |
Support 20MHZ |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b 11Mbps 11g 54Mbps |
| Alarm |
RF alarm frequency |
868.4MHZEU, 908.4MHZ US, 921.4MHZANZ, 869.2 MHZ RU |
| RF Distance |
Indoor50m, outdoor100m |
| Support Alarm Senso |
Magnetic contacts and PIR sensors |
| PIR*3PCS |
Built-in 3PCS PIR sensor layout |
| General |
Operating Conditions |
Less than90% RH/-10° C ~ +45° C |
| Power Supply |
12V5A |
| IR Range |
10 m to 15 m |
| Dimensions (mm) |
230*230*120mm |
