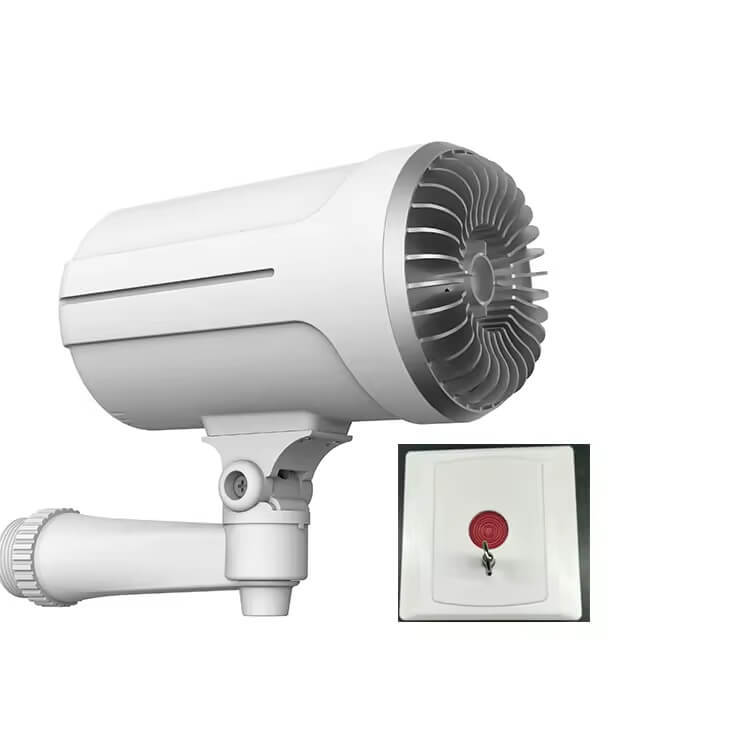

HAM-FL-Z Security Fog Generator Controlled by Panic Button On-off Switch Host Alarm

Core Value Proposition: A hardwired, professional-grade security fog generator designed for seamless integration into existing third-party alarm and security control panels. It provides an instant, powerful physical deterrent layer for comprehensive commercial protection systems.

Key Selling Points:

• Built for Professional System Integration: Features standard dry contact inputs (IN+&IN-) for direct, reliable connection to alarm control panels, access control systems, or other security triggers, enabling automatic activation upon alarm events.

• Ultra-Fast & Complete Coverage: Our fastest formula protects critical areas within 3 seconds and achieves full coverage in just 8 seconds, following a 1-second trigger. It provides 30-45 minutes of visual obscurity to secure spaces up to 150m³.

• Reliable, Maintenance-Conscious Design: Engineered for set-and-forget reliability with no heating time required and an automatic power-saving mode. Simple wall or ceiling mounting with wide operational tolerance (-10°C to 50°C / 0%-80% RH).

• Certified Safe & Dependable: Uses non-toxic, solid dry fog that is safe for people and assets. Backed by CE certification, non-toxic test reports, and protected by design & utility model patents.

• Cost-Effective Operation: Low power consumption (0-24W, DC12V/2A) ensures minimal ongoing operational cost.

Target Use Case: The ideal add-on physical response solution for warehouses, retail chains, financial institutions, and data centers that already have a monitored alarm system. It bridges the gap between detection (alarm) and physical response (dense fog), enhancing system effectiveness.

Technical Parameter

Model Number	HAM-FL-Z
Fog System
Fog formula	Solid Dry Material, Non-toxic smoke
Fog performance	Cold smoke, 1 second triggered, protect critical area in 3 seconds, cover the protected area in 8 seconds.
Ejection time	15-20 seconds
Fog duration time	30-45 minutes
Heating time	NO need
Protect area	In closed or half closed Area (height2.5-3m), With filter is 100m³, Without filter is 150m³
Control
Trigger method	Panic button, On-off switch and alarm control panel
Connection & active	Connect the IN+&IN-, press the remote control or panic button at least 2 seconds (suggest 5 seconds) to trigger fog. It switches to power saving mode after triggering.
Specification
Power	DC12V, 2A
Power consumption	0-24W
Working environment	-10℃~ 50℃/ humidity 0%-80%
Installation	Wall mount / ceiling mount
Certification	CE, NON-TOXIC test report
Patent	Design patent, utility model patent
Single package size	34X26X16 cm
Single gross weight	2.00 kg





In the box:

1.Security Fog Generator*1
2.Power Adapter*1
3.Bracket*1 and tool &screws*1set
4.Phoenix Plug*1
5.User Manual*1

6.Relay Module *1
