| Model number |
NC5130A-8M |
NC5130-6M |
NC5130-3M |
| Camera |
| System structure |
NT98566 |
GK7205V300 |
GK7205V210 |
| Image sensor |
8MP 1/2.8” SONY IMX415 |
6MP 1/2.8” SONY IMX335 |
3MP 1/2.8” SONY IMX307 |
| Mini. Illumination color |
0.0001Lux@F1.2, B/W 0.0001Lux@F1.2 |
| Electronic shutter |
1/50(1/60) s to 1/10,000s |
| Day/night |
IR cut filter with auto switch |
| Lens |
| Focal length |

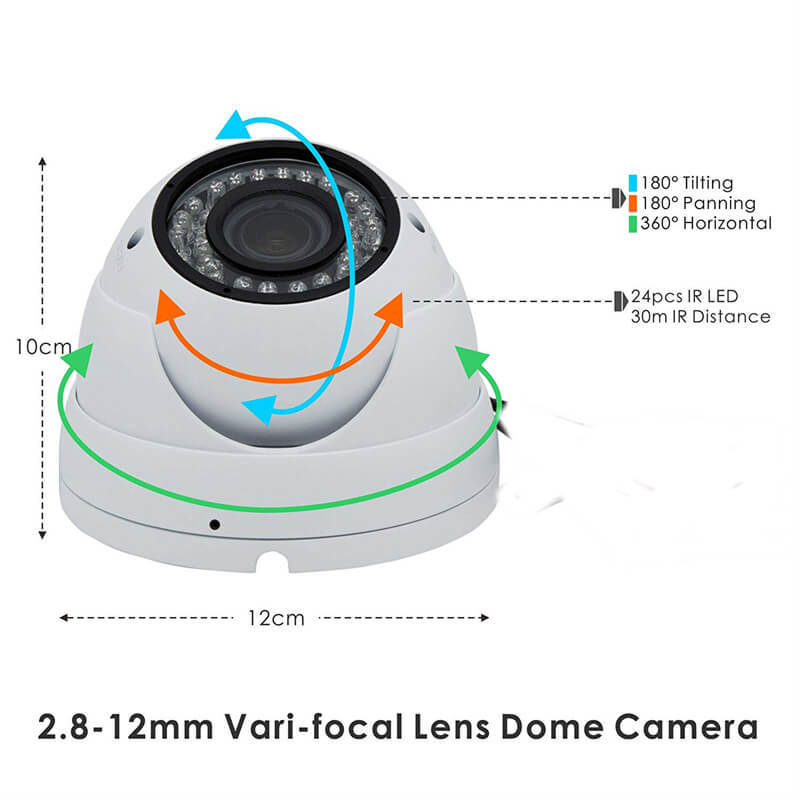

2.8-12mm Manual varifocal lens |
| LED light |
24pcs SMD infrared IR LED |
| IR range |
Infrared 30meters |
| Signal noise ratio |
≥50dB(AGC OFF) |
| WDR |
Digital WDR |
| Defog |
Digital defog |
| BLC |
Yes |
| Noise reduction |
2D/3D DNR |
| White balance |
Auto/manual |
| Gain control |
Auto/manual |
| Privacy masking |
Off/on (4 Areas, rectangle) |
| Image Settings |
Brightness, contrast, sharpness, white balance, AGC, AE; Privacy area OSD overlay picture flip, normal 90°/270°; Auto/manual color switch to B/W |
| Compression |
| Video Compression |
H.265AI/H.265+/H.265/H.264 |
| Main Stream |
8MP 3840*2160@15fps; 5MP@25fps |
6MP 3072*2048@20fps; 5MP@25fps |
3MP 2304*1296@21fps; 2MP@25fps |
| Sub Stream |
800*448@25fps |
| Compression rate |
0.1M~8Mpbs variable video vontinuously adjustable, CBR/VBR |
| Subtitle overlay |
Channel name, date&time, stream information overlay, stack position adjustable |
| Audio compression |
G.711 64Kbps, support bidrectional talk, audio&video synchronization |
| Data Transmission |
| Data storage |
Video, Image Files |
| Storage system |
Manual, automatic (Cycle, timing, alarm switch, motion detection) |
| Alarm transmission |
FTP, Email, internet browser, CMS monitoring software |
| Network / protocol |
1*RJ45 100M; TCP/IP,HTTP,DHCP,DNS,DDNS,PPPoE,SMTP,NTP,(HTTPS,SIP, 802.1x,IPv6) etc |
| Onvif |
Support |
| Other function |
Web,OSD,live video transmission,motion detection,front-end storage/playback/download, center reminder and image linkage, JPEG capture; united remote client monitoring software, SDK |
| Web remote access |
Chrome, Firefox, Edge, Max 4 users synchronization |
| Smart phone App |
IOS, Android by XMEye Pro APP |
| P2P/Cloud |
Yes, support QR code |
| Intelligent analysis |
Humanoid detection, face detection, vehicle detection |
| Interface |
| Audio In/output |
Built-in 1ch MIC/Optional audio output. |
| TF Card Slot |
N/A |
| Reset Button |
N/A |
| Alarm input/output |
N/A |
| WiFi port |
N/A |
| General |
| Power supply |
DC12V±10%, PoE(IEEE 802.3af) |
| Power consumption |
IR On: 600mA max., IR Off: less than 200mA |
| Working environment |
-30°C~+60°C / 0~95%(Non-condensing) |
| Protection level |
Full metal, IP66 waterproof |

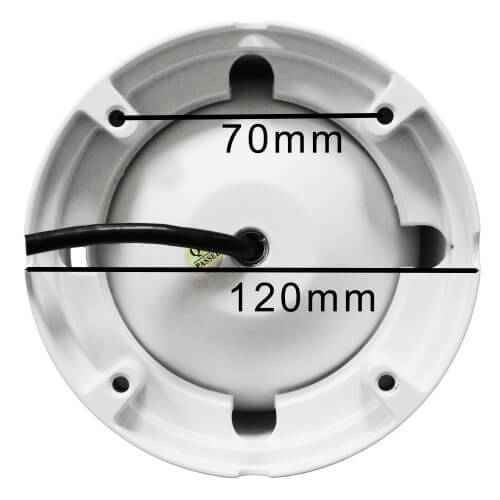

| Dimension(mm) |
98mm(H)*140(D)mm |
| Weight(kg) |
0.65kg |
