24HDD 196ch 128ch 12MP Professional Rack Mount Smart NVR

€872,95 EUR
Channel
HDD Capacity
Quantity

Order Number:
NVR8196-24H (196CH 24HDD)
NVR8128-24H (128CH 24HDD)

Key Features：
●Support 196ch/128CH 12MP IPC input
● Max.24pcs Hard disk, each up to 16TB
●Mode 1：1 pcs HDMI output:（12MP/D1+128 CH Preview+16CH playback）
●Mode 2：2 pcs HDMI output:（12MP/D1+2 pcs 64+64CH preview+16CH playback）
●Mode3：4 pcs HDMI output:（8MP/D1+4 pcs 36+36+36+36 CH preview+16CH playback）
●Support H265,H264,Smart 265 compression format
●Support max 4CH 4K playback and 16CH D1 playback
●Support single screen to display 8K output
●Support 2 pcs monitors HDMI to display output (1*8K+1*4K)
●Support 4 pcs monitors HDMI to display output (3*4K+1*1080P)
●Support synchronized recording,remote view,backup recording in MP4 format, mobile view
●Support VGA/HDMI and channel tour round grouping
●Support preview image and playback image electronic amplification
●Support ONVIF protocol, RTMP, RTSP, GB28181, DDNS,UPNP,NTP,P2P...etc
●Support alarm capture,send alarm information by email
●Support WEB, mobile view,IMS surveillance
●Support IPC smart analysis: area intrusion, line-crossing. absent detection, loitering, retrograde detection, vehicle illegal parking
●Support network inspection-network traffic monitor, ether-detect packet,network diagnosis..etc
●Support HTML5 remote login operation
● Support to add IPC manually or automatically in LAN, upgrade IPC online and by memory
●Support to maintain IPC under private protocol, including restore, restart, enable or disable all network function
●Support disconnected network supplement function, optimize bandwidth incoming up to 800M
●RAID 0, RAID 1, RAID 5, RA ID6, and RAID10, with global thermal backup
●Support RAID, IPSAN, NAS local storage



Model NO. NVR8196-24H NVR8128-24H
System
Protocol  RTSP,SLINK(private protocol),ONVIF,I9
Main Processor  RK3588
Operating System Embedded Linux
Bandwidth 800M
Video Resolution 12Mp/8Mp/5Mp/3Mp/720P/D1
Smart Function Area intrusion detection, loitering detection, line-crossing, vehicle illegal parking, absent detection, retrograde detection, human and vehicle detection(work with our 8000series IP camera)
Recording & Playback
Record Mode Manual, schedule, motion detection, timing, smart record(record when alarm such as area intrusion detection and so on to save HDD)
Playback 1ch 12Mp, 4ch 4K, 16ch D1
Playback Mode Regular playback, smart/event playback(playback the footage which include alarm)
Video & Audio
Video Compression H265+/H.265/H.264
Video Input 196ch(4000x3000, 3840x2160, 2592x1944, 2048x1536, 1920x1080) 128ch(4000x3000, 3840x2160, 2592x1944, 2048x1536, 1920x1080)
Display Mode Mode 1: 1PC HDMI output 12Mp/D1 + 128ch preview+16ch playback Mode 2: 2PCS HDMI output 12Mp/D1 + 2 screens 100ch+100ch preview +16ch playback Model 3: 4PCS HDMI output 8Mp/D1 + 4 screens 49ch+49ch+49ch+49ch preview + 16ch playback Mode 1: 1PC HDMI output 12Mp/D1 + 128ch preview+16ch playback Mode 2: 2PCS HDMI output 12Mp/D1+2 screens 64ch + 64ch preview+16ch playback Model 3: 4PCS HDMI output 8Mp/D1+4 screens 49ch +49ch+49ch+49ch preview+16ch playback
Split & Decoding

1 screen mode:1chx8K, 2chx12Mp, 4chx12Mp, 6ch(1chx12Mp+5chx2Mp), 8ch(1chx12Mp + 7chx2Mp), 9chx8Mp, 10ch(2chx8Mp+ 8chx3Mp), 16chx5Mp, 25chx3Mp, 36ch/49ch/64ch/128ch xD1
2 screen mode:1chx8K, 2chx12Mp, 4chx8Mp, 6ch(1chx12Mp+5chx2Mp), 8ch(1chx12Mp+7chx2Mp), 9x3Mp, 10ch(2chx8Mp+ 8chx2Mp), 16chx2Mp, 25ch/36ch/49ch/64ch/81ch/100 xD1
4 screen mode:1chx12Mp, 2chx8Mp, 4chx5Mp, 6ch(1chx8Mp+5chx2Mp), 8ch(1chx5Mp+7chx2Mp), 9chx2Mp, 10chx2Mp,16ch/25ch/36ch/49ch xD1

1 screen mode:1chx8K, 2chx12Mp, 4chx12Mp, 6ch(1chx12Mp + 5chx2Mp), 8ch(1chx12Mp + 7chx2Mp), 9chx8Mp, 10ch(2chx8Mp + 8chx3Mp), 16chx5Mp, 25chx3Mp, 36ch/49ch/64ch/128ch xD1
2 screen mode:1chx8K, 2chx12Mp, 4chx8Mp, 6ch(1chx12Mp+5chx2Mp), 8ch(1chx12Mp+7chx2Mp), 9x3Mp, 10ch(2chx8Mp+ 8chx2Mp), 16chx2Mp, 36ch/49ch/64ch/81ch/100ch xD1
4 screen mode:1chx12Mp, 2chx8Mp, 4chx5Mp, 6ch(1chx8Mp+5chx2Mp), 8ch(1chx5Mp+7chx2Mp), 9chx2Mp, 10chx2Mp,16ch/25ch/36ch/49ch xD1
Video output HDMI x 4
Audio Compression G.711A/U
Audio I/O RCA port
Storage & backup
Storage Local hard disk,network HDD (IPSAN, NAS)
HDD Capacity 24pcs 3.5" SATA , each disk up to 16TB capacity
Backup method USB portable HDD, U disk, network
Network
Interface 2xRJ45 10M/100M/1000M Adaptive Ethernet Interface
Network protocol DDNS, EMAIL, UPNP, NTP, DHCP, IP Filter, PPPoE, P2P
CMS Software Windows 7/ Windows 8/Windows 10/MAC OS
App SeeEsay App, support iOS & Android

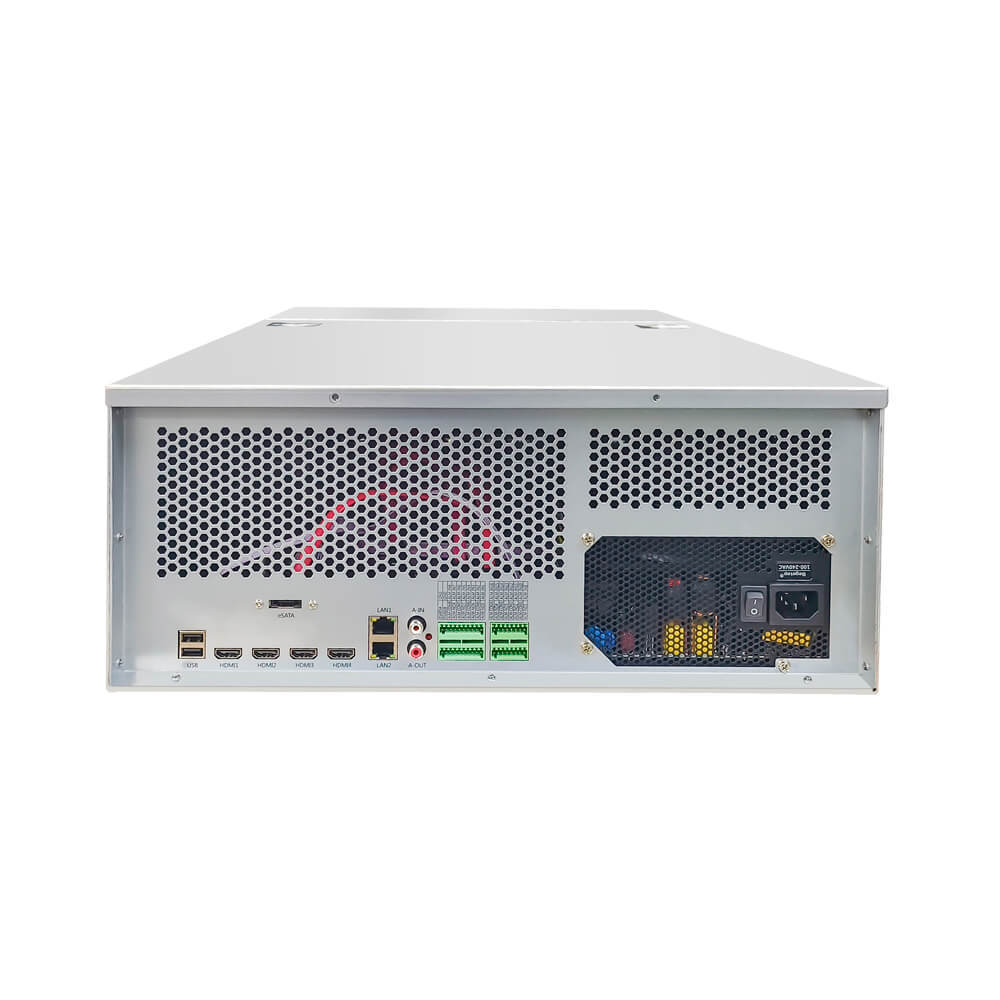

External Port
Network Port 2xRJ45 10/100/1000M adaptive Ethernet interface
Audio Input RCA portx1
Audio Output RCA portx1
USB USB port 2.0x3
E-SATA 1
RS-485 1
RS232  /
Alarm I/O 16ch in, 8ch out optional
HDMI 4Pcs
VGA  /
General
Power Supply  ATX 110-240V/50-60Hz
Power Consumption  ≤750W(without HDD)
Working Environment  -10~55℃/10~90%

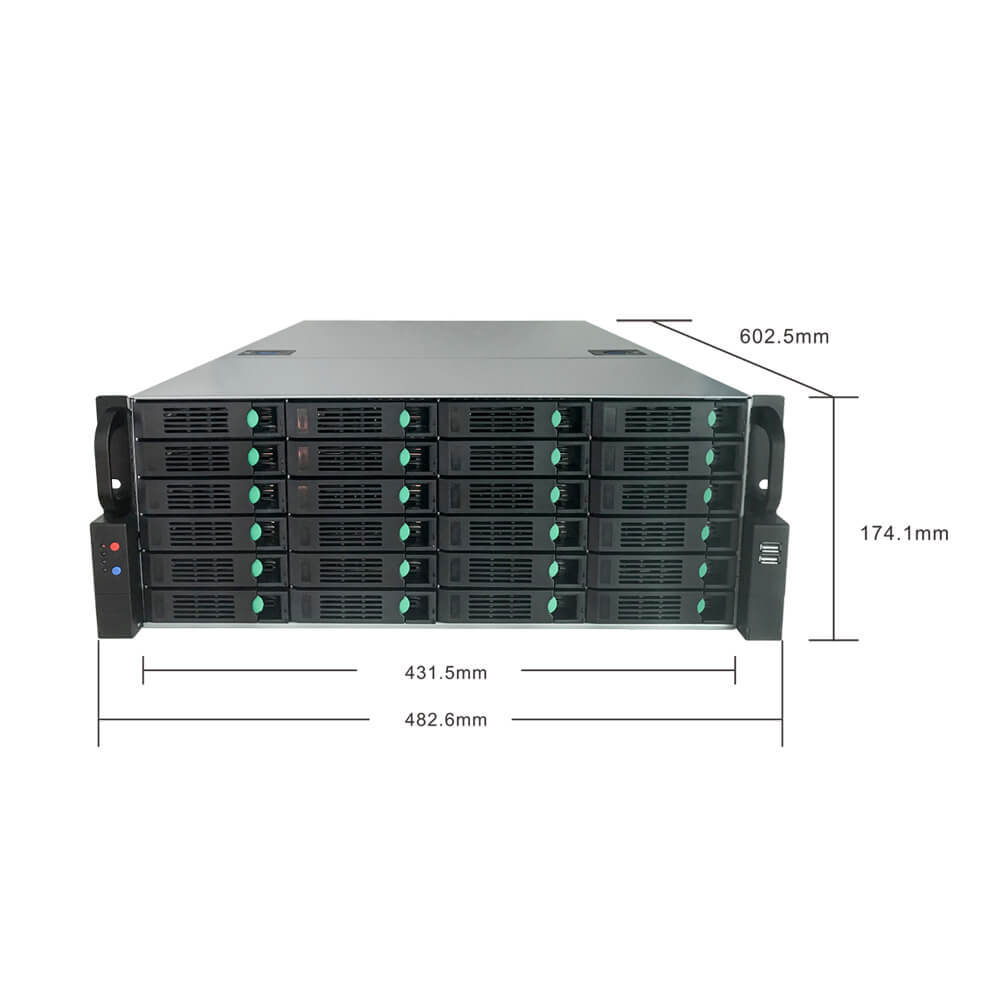

Dimension  4U chassis,482.6(w)x602.5(D)x174.1(H)mm
Weight(kg)  8.5KG(without HDD)
Package  1PCS/carton, 57x56x26CM, 10KG(without HDD)
