Key Features:
8Mp SC8239+NT98566 and 6MP SONY335+GK7205V300 CMOS sensor
H.265AI / H.265+ / H.265 / H.264 , dual-stream;
4K 8MP/6MP UHD resolution;
1.8mm panoramicfisheye Lens;

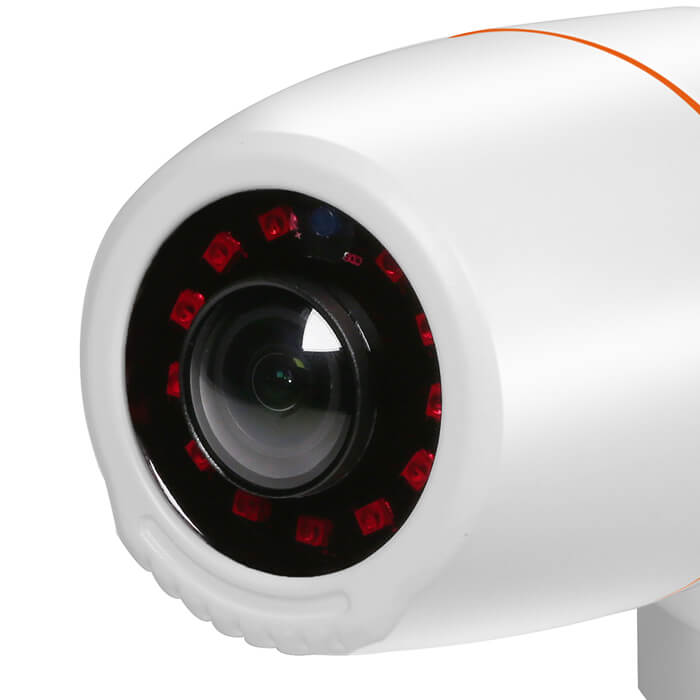

12pcs SMD infrared IR LED, up to 20meters IR range;
DWDR, True Day/Night(ICR), 2D/3DNR, AWB, AGC, BLC,ROI;
Audio built-in 1ch microphone;
Intelligent analysis: Face detection, humanoid detection, vehicle detection, etc.
Cloud P2P, XMEye Pro App monitoring, PC VMS;
Compatible with the 3rd party NVR and platforms of Hikvision,Dahua,UNV,TP-Link,Raysharp,Milestone etc.
Power supply DC12V 2A / PoE
Core Value Proposition: Maximize surveillance coverage and reduce installation costs with the NC5242P-8M 8MP PoE Fisheye Camera. Its 165° ultra-wide view monitors large commercial areas like warehouses, retail floors, or lobbies with a single camera, eliminating blind spots and the need for multiple devices.
Key Selling Points:
-
Unmatched Area Coverage: The 1.8mm fisheye lens provides a super-wide 165° field of view, delivering panoramic surveillance of expansive spaces. This simplifies layout planning and drastically cuts down the total number of cameras required per project.
-
High-Definition Detail with Reliability: Features a 1/2.8" Sony 415 CMOS sensor and 8MP resolution to capture clear, detailed footage essential for identifying persons or incidents, even in large-scale environments.
-
Smart, Actionable Alerts: Advanced Human Shape & Face Detection filters out false alarms from pets or moving shadows. It sends precise mobile alerts, allowing for faster, more informed response to genuine security events.
-
Professional, Simplified Installation: Built-in 48V PoE
-
Built for Demanding Environments: IP66-rated waterproof metal housing ensures reliable operation indoors or outdoors.
Target Use Case: Ideal for warehouses, manufacturing floors, retail stores, school hallways, and small business lobbies where maximizing visual coverage per camera is critical for cost-efficiency and comprehensive monitoring.
Technical parameter
| Model number |
NC5241P-8M |
NC5241P-6M |
| Camera |
| System structure |
NT98566 |
GK7205V300 |
| Image sensor |
8MP 1/2.8” SC8239 |
6MP 1/2.8” SONY IMX335 |
| Mini. Illumination color |
0.0001Lux@F1.2, B/W 0.0001Lux@F1.2 |
| Electronic shutter |
1/50(1/60) s to 1/10,000s |
| Day/night |
IR cut filter with auto switch |
| Lens |
| Focal length |
1.8mm panoramic fisheye lens, FOV 160~165 degree |
| LED light |
12pcs SMD infrared IR LED |
| IR range |
20meters Infrared range |
| Signal noise ratio |
≥50dB(AGC OFF) |
| WDR |
Digital WDR |
| Defog |
Digital defog |
| BLC |
Yes |
| Noise reduction |
2D/3D DNR |
| White balance |
Auto/manual |
| Gain control |
Auto/manual |
| Privacy masking |
Off/on (4 Areas, rectangle) |
| Image Settings |
Brightness, contrast, sharpness, white balance, AGC, AE; Privacy area OSD overlay picture flip, normal 90°/270°; Auto/manual color switch to B/W |
| Compression |
| Video Compression |
H.265AI/H.265+/H.265/H.264 |
| Main Stream |
8MP 3840*2160@15fps; 5MP@25fps |
6MP 3072*2048@20fps; 5MP@25fps |
| Sub Stream |
800*448@25fps |
| Compression rate |
0.1M~8Mpbs variable video vontinuously adjustable, CBR/VBR |
| Subtitle overlay |
Channel name, date&time, stream information overlay, stack position adjustable |
| Audio compression |
G.711 64Kbps, support bidrectional talk, audio&video synchronization |
| Data Transmission |
| Data storage |
Video, Image Files |
| Storage system |
Manual, automatic (Cycle, timing, alarm switch, motion detection) |
| Alarm transmission |
FTP, Email, internet browser, CMS monitoring software |
| Network / protocol |
1*RJ45 100M; TCP/IP,HTTP,DHCP,DNS,DDNS,PPPoE,SMTP,NTP,(HTTPS,SIP, 802.1x,IPv6) etc |
| Onvif |
Support |
| Other function |
Web,OSD,live video transmission,motion detection,front-end storage/playback/download, center reminder and image linkage, JPEG capture; united remote client monitoring software, SDK |
| Web remote access |
Chrome, Firefox, Edge, Max 4 users synchronization |
| Smart phone App |
IOS, Android by XMEye Pro APP |
| P2P/Cloud |
Yes, support QR code |
| Intelligent analysis |
Humanoid detection, face detection, vehicle detection |
| Interface |
| Audio In/output |
Built-in 1ch Microphone |
| TF Card Slot |
N/A |
| Reset Button |
N/A |
| Alarm in/out |
N/A |
| WiFi port |
N/A |
| General |
| Power supply |
DC12V±10%, PoE(IEEE 802.3af) |
| Power consumption |
IR On: 400mA max., IR Off: less than 150mA |
| Working environment |
-30°C~+60°C / 0~95%(Non-condensing) |
| Protection level |
Full metal+Plastic ABS, IP66 waterproof |
| Dimension(mm) |

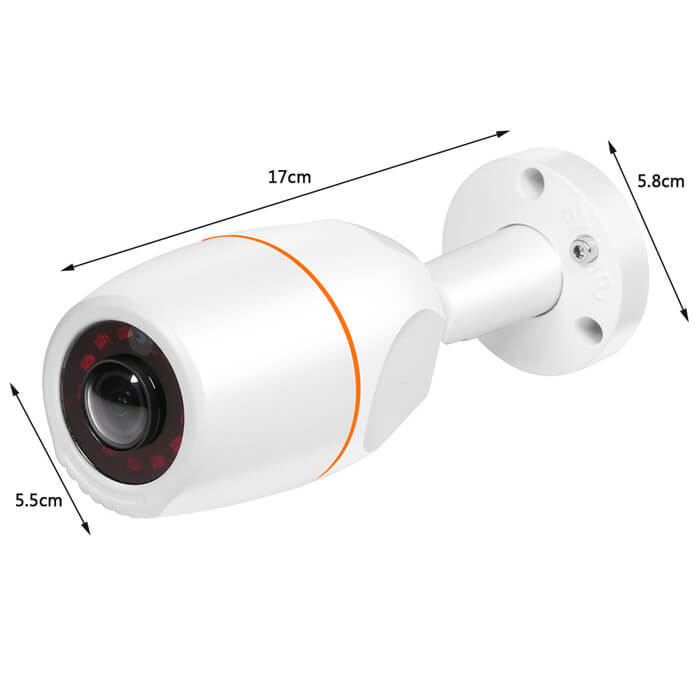

185mm(W)*65(H)mm*65(D) |
| Weight(kg) |
0.44kg |
